At the request of an Arrowhead Lake Association board member, I created a model of the Lake Arrowhead spillway. The spillway allows some water to exit the lake to avoid flooding. I used Solidworks to create a to-scale model of the spillway that includes moveable gates, and eventually 3D printed the model. This model will be used to better explain and understand the lake's flood prevention mechanisms.
A video showing the Solidworks model and various configurations of the flood gate.

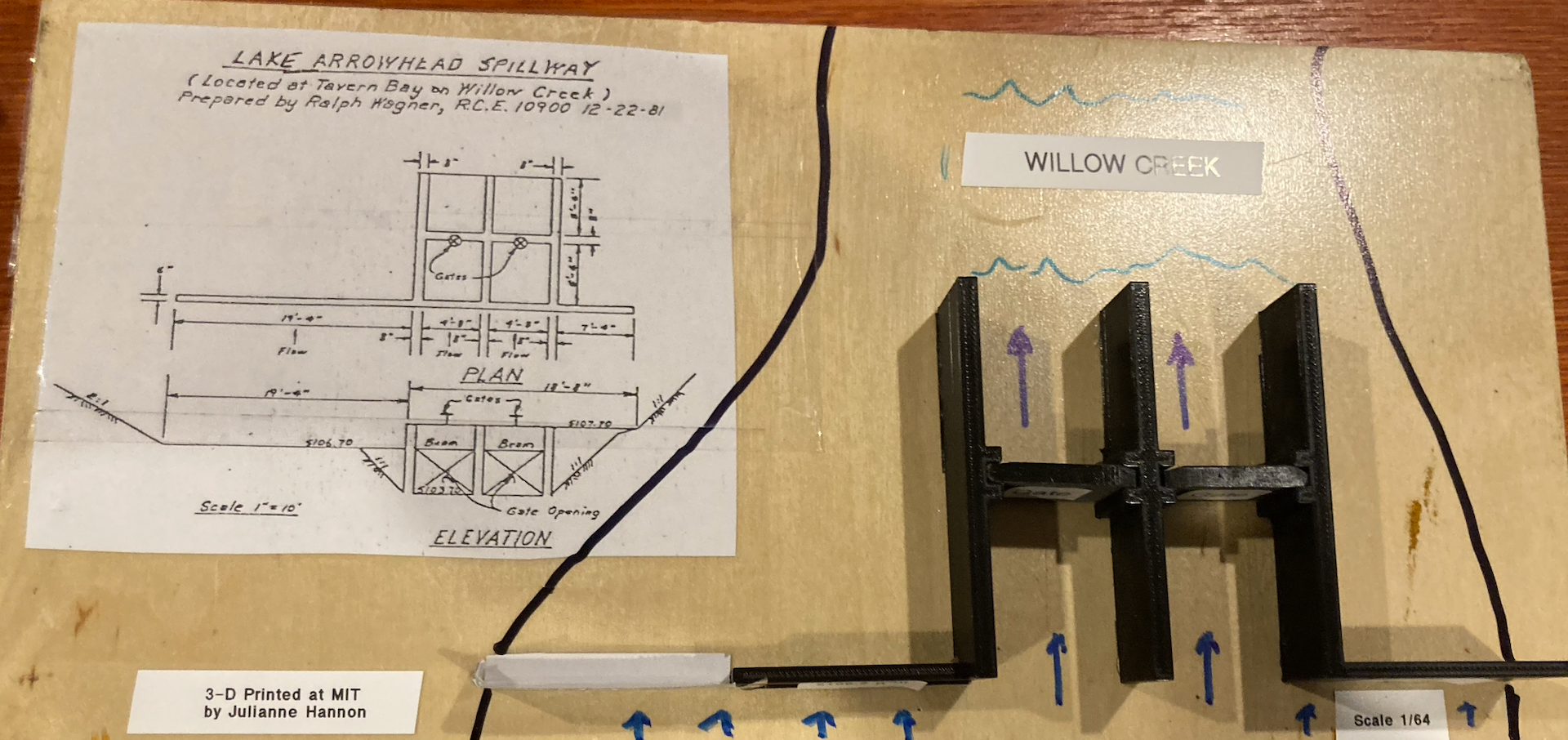

The full spillway model. On the left is the original plan drawing and on the right is my 3D printed model.
